Additional information
| Power | |
|---|---|
| Reel max. load | 5 000 kg |
| Coil max. load | 400 kg |
| Length | 2 920 mm |
| Width | 1 600 mm |
| Height | 1 680 mm |
| Weight | 800 kg |
Talurit® Handling Systems

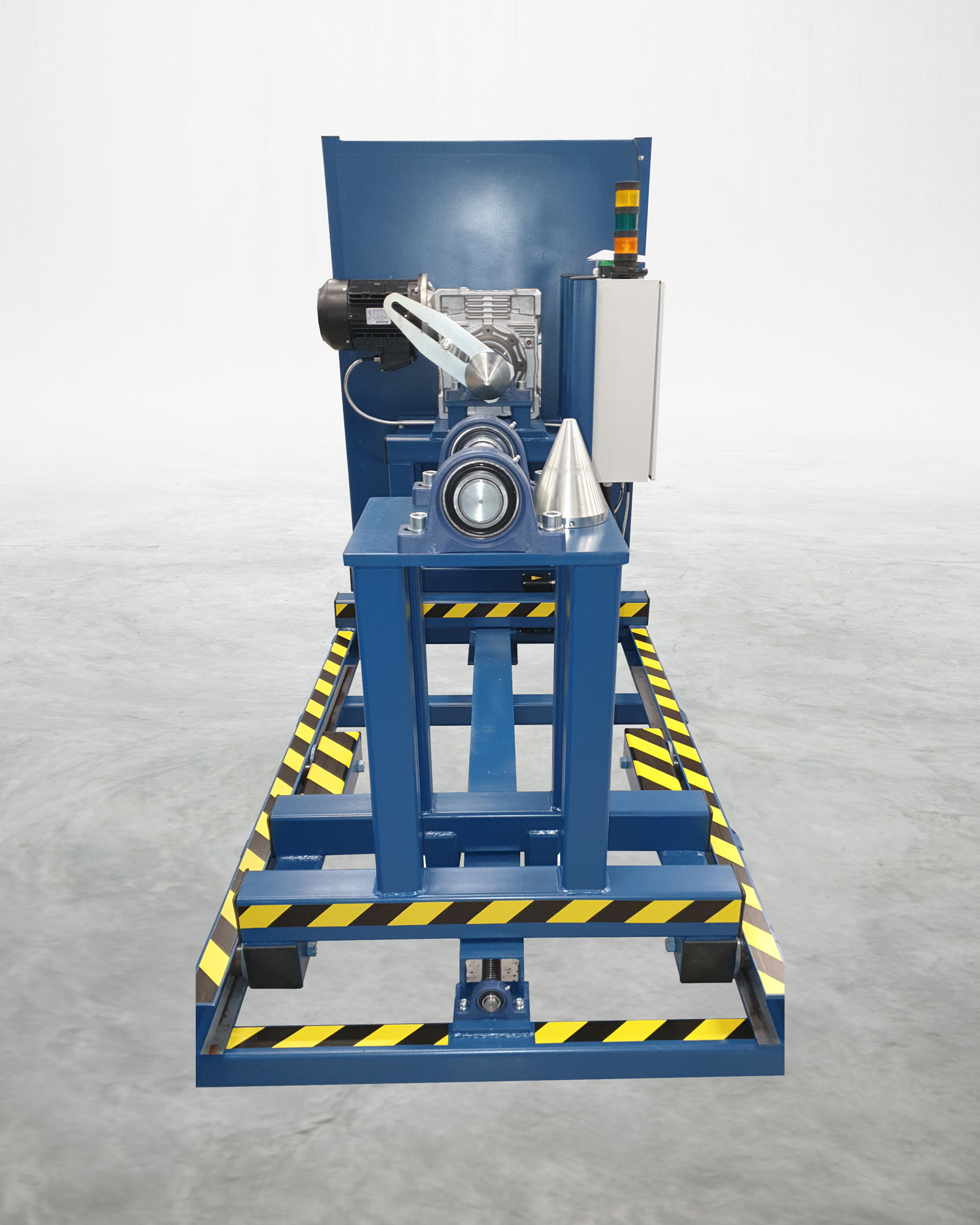

UL 5000/400 – Coiling Machine
The Talurit® UL 5000/400 is engineered to meet the diverse needs of wire rope rigging shops, ensuring safe and efficient coiling and reeling of wire ropes. This versatile machine is designed to accommodate both reeling onto drums and coiling onto naked coils, offering a broad spectrum of capabilities.
The system boasts an impressive capacity, capable of handling wire rope drums weighing up to 5 tonnes and naked coils up to 400kg. Its robust design empowers rigging shops to streamline their operations effectively.
At the core of the UL 5000/400 is a commitment to operator safety. The system features an innovative wire rope guide, guaranteeing that the operator remains at a safe distance from the running wire rope while maintaining full operational control.
The coiling unit is fully enclosed to eliminate any potential harm to the operator. Rigging and unloading of wire rope drums can be managed from a safe distance using either the control panel or the included handheld remote control. Moreover, the coil is fully collapsible as a standard feature and offers adjustability in both width and inner diameter.
The machine can be used with the standard pin, cones, or additional adapters, which enable it to accommodate drums with larger pin holes. When utilizing cones, the maximum handling weight is 500 kg. The wire rope guide is equipped with a control mechanism that allows the operator to steer the machine effortlessly. Grabbing the control activates the machine, and upon release, it promptly executes a secure stop, essentially functioning as a “dead man’s handle”. The wire rope guide also offers speed control, directional control, and has its own emergency brake, ensuring comprehensive control and protection for the operator. When integrated with our measuring machine and turntable, the UL 5000/400 becomes the cornerstone of a one-man-operated system, expertly managing the handling of running wire ropes securely. In this setup, the start/stop and ramp up/down functions of all integrated machines synchronize seamlessly, uniting them into an efficient, integrated system.
We are glad that you are interested in this machine. Fill in the form below to ask for an individual quote and we will get back to you as soon as possible.
Elevate efficiency with our wire rope handling machines
Efficient & safe cutting machines
In demanding industrial environments, equipment durability is non-negotiable. Our wire rope handling machines are engineered to excel in the toughest conditions, delivering unparalleled performance year after year. Investing in our coiling, uncoiling, and measuring machines means investing in cost-effective solutions that provide long-term value. Built with durability and reliability at their core, our machines are crafted to withstand the challenges of serial production while maintaining consistent performance standards without compromising quality. With a wealth of experience and unwavering dedication to our craft, we stand out as industry leaders in wire rope handling solutions.
Wire rope coiling machines: Enhancing efficiency & safety
Wire rope coiling machines are the ultimate solution for professionally coiling wire ropes with optimal efficiency and safety. These machines are designed to minimize the risk of rope damage or personal injury, offering precise control during the coiling process. By neatly winding wire ropes onto reels or coils, operators can produce well-organized and compact wire rope coils ready for immediate deployment.
Reliable uncoiling machines for seamless operations
In rigging shops and industries handling wire ropes, a reliable uncoiling machine is indispensable. It ensures seamless and secure unwinding of wire ropes from large reels or drums, providing a controlled and consistent unwinding action to prevent tangles and snags that could hamper operational efficiency.
Precision measuring machines for accurate length control
Precision is paramount in wire rope handling, where measuring machines play a crucial role in ensuring accurate length measurements during coiling and uncoiling processes. By incorporating cutting-edge measuring technology, these machines empower operators to oversee and regulate wire rope length with exceptional accuracy, minimizing waste and optimizing resource efficiency.
