Talurit® - Gerro™ Combi System

Gerro™ Combi Die sets

The Gerro™ Combi system
SKU: SIZE B1 & C Category:

Press dies for the Gerro™ Combi system.
We have over 10 standard die sets available and can manufacture custom die sets upon request. A complete list and matching table can be found in the overview.

Die sizes: B1 & C

Our dies are manufactured from high-quality recycled Swedish steel for optimum strength, durability, and service life. In addition to our comprehensive standard range, we are also able to supply special dies tailored to meet the specific requirements of our customers. The press dies ensure a smooth and rounded finish of the swaged ferrules, enhancing the safety further for the end users. Explore our range of press dies, each crafted in our own facilities in Sweden where they have been coned and polished by hand.

Gerro™ Combi
Get a quote

We are glad that you are interested in this product. Fill in the form below to ask for an individual quote and we will get back to you as soon as possible.

Dies for swaging the Gerro™ Combi system

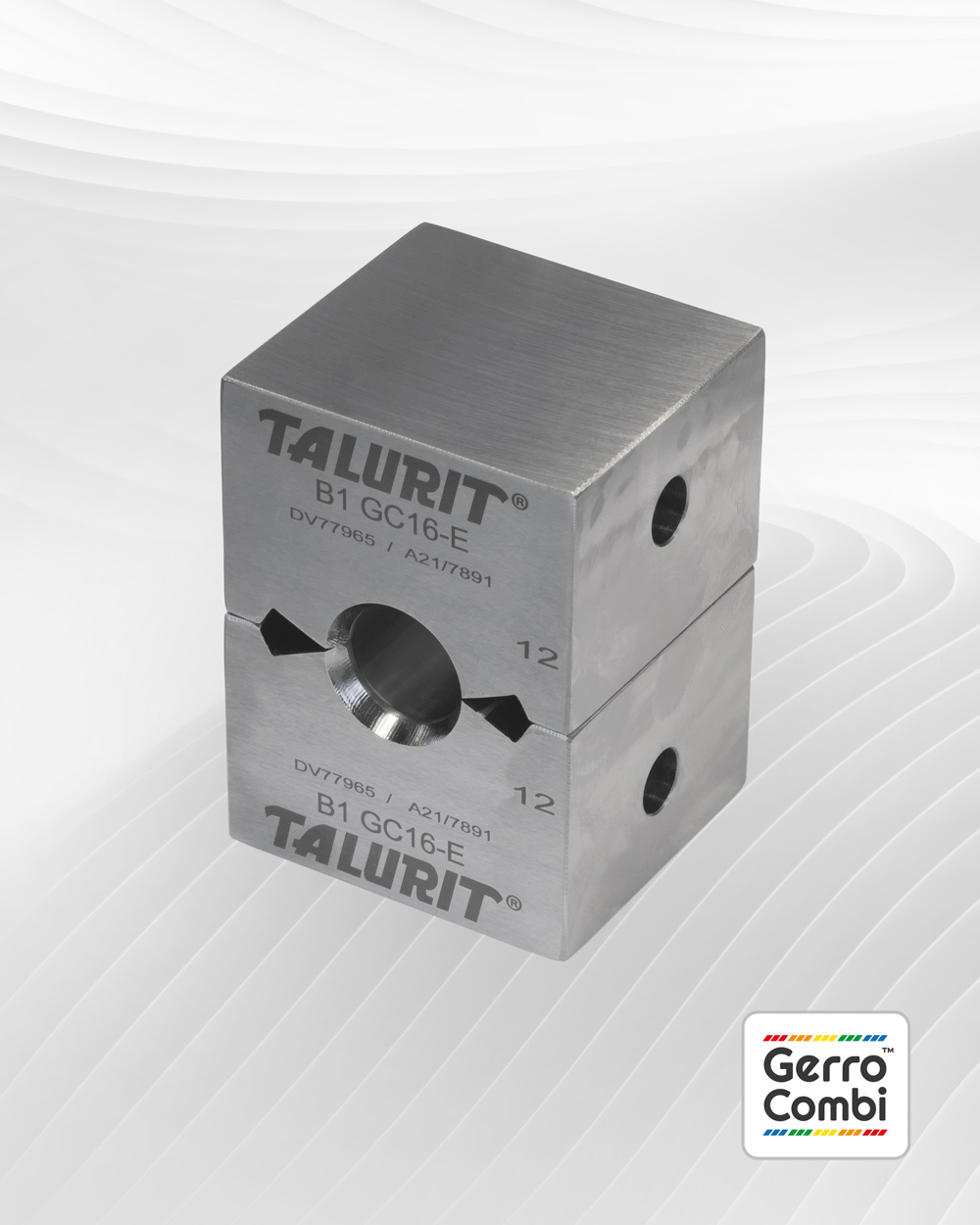

Talurit® A close-up image of two metallic blocks branded "Talurit" with an inscription "B1 GC16-E." Each block, part of the Gerro™ Combi Die sets designed for the mechanical splicing of wire rope, features a hole through the center. The Gerro Combi logo is in the bottom right corner. © Copyright Talurit AB. All rights reserved.

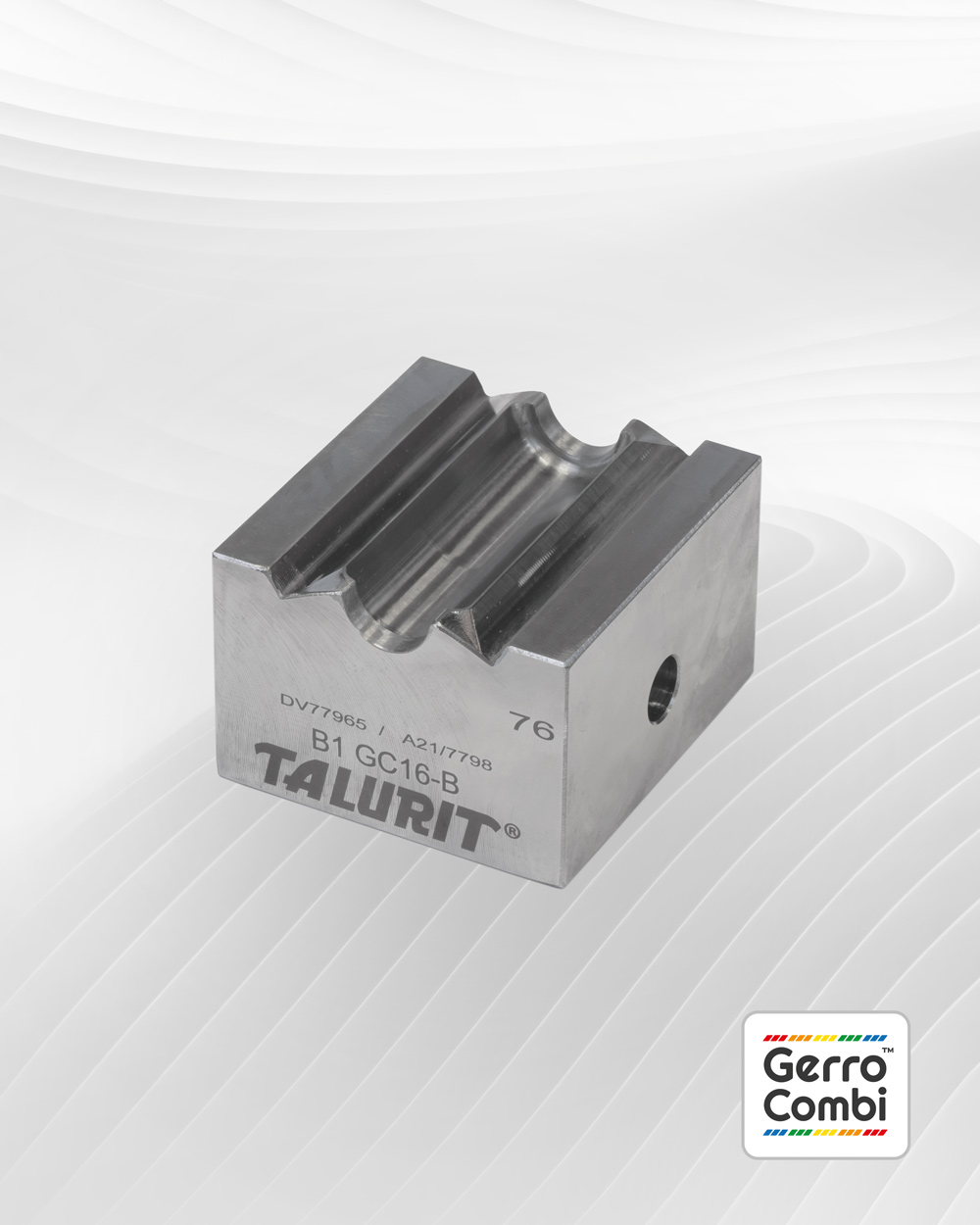

A Gerro™ Combi Die labeled "TALURIT," featuring a groove in the center and a hole on the side, specifically designed for combination wire rope equipment. Engraved on its surface are the numbers "DV77965," "A217765," "B1 GC16-B," and "76." The bottom right corner bears the Gerro Combi logo. © Copyright Talurit AB. All rights reserved.

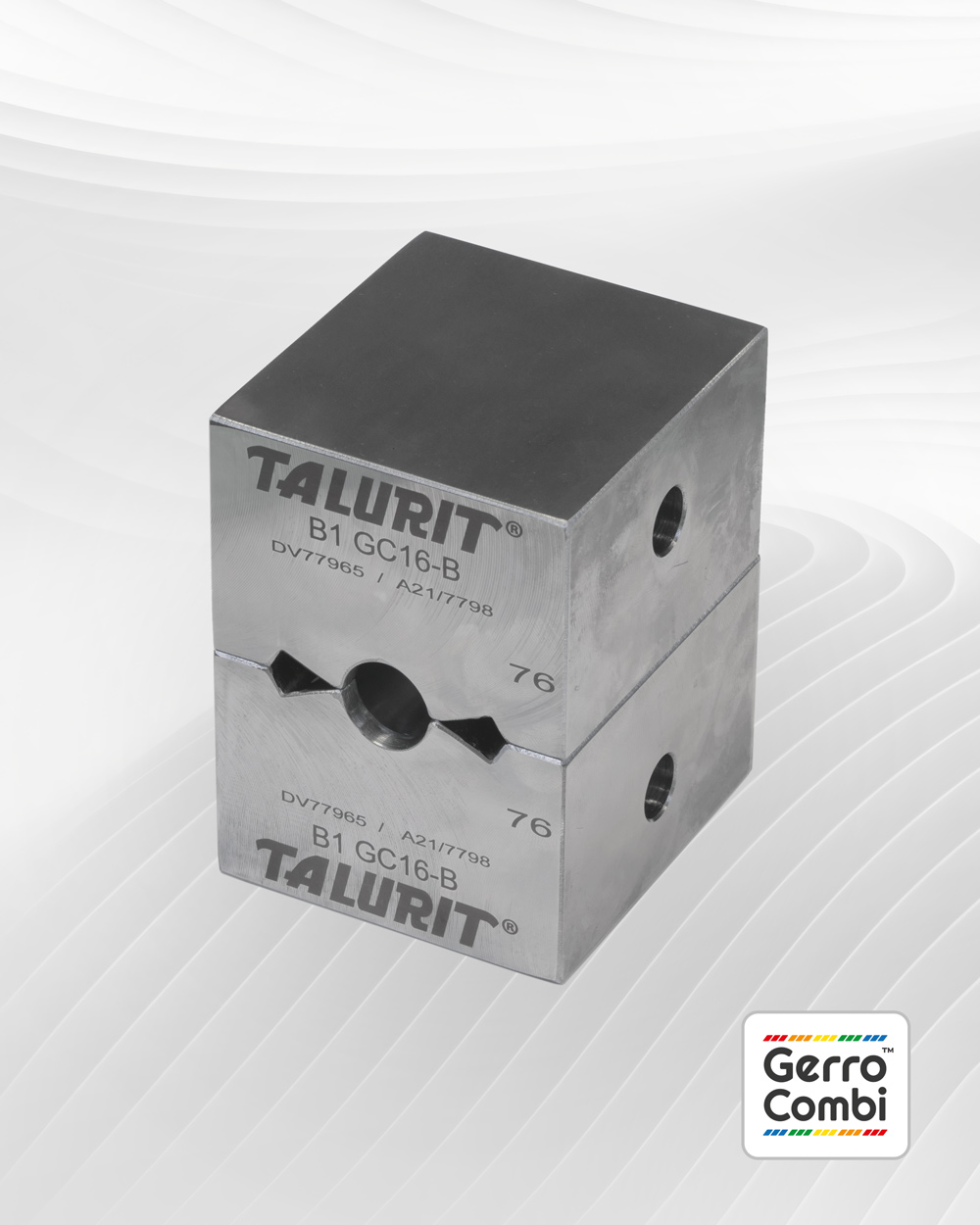

A Gerro™ Combi Die set labeled "B1 GC16-B" consists of two identical metal halves, each featuring a circular groove for wire rope ferrules, along with imprinted serial numbers. The bottom right corner showcases the "Gerro™ Combi" logo adorned with colorful stripes. © Copyright Talurit AB. All rights reserved.
Share on:
FacebookLinkedInWhatsappEmailPrint

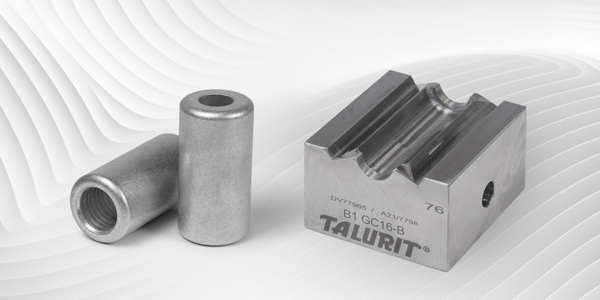

Matching press dies and ferrules

The Gerro™ Combi system offers a diverse selection of press dies meticulously crafted to perfectly complement the different Gerro™ Combi ferrules.

To select the right Gerro™ Combi press die to complement your ferrule, please refer to the table below which will be visible once you have clicked the button.

For additional assistance and detailed information, feel free to contact our technical department.

View the matching table
Dies for swaging the Gerro™ Combi system
Product No Type Press die
GC16-B Bolt-joint ferrule B1 GC16-B
GC16-BK Short bolt-joint ferrule B1 GC16-S + BK
GC16-C Cross joint 5T GC16-C
GC16-E Eye ferrule B1 GC16-E
GC16-EK Short eye- ferrule B1 GC16-EK
GC16-J Joint ferrule B1 GC16-J
GC16-S Stop ferrule B1 GC16-S
GC16-T T-joint ferrule B1 GC16-T
GC16-TCK T-Cross Joint B1 GC16-TCK
GC16-RF Rope to fork ferrule
GC16-RE Rope to eye ferrule
GC16-K Chain to rope ferrule B1 GC16-K
GC16-SCF Non swage cross joint ferrules -
GC18-B Bolt-joint ferrule B1 GC18-B
GC18-BK Short bolt-joint ferrule B1 GC18-S + BK
GC18-C Cross joint 5T GC18-C
GC18-E Eye ferrule B1 GC18-E
GC18-EK Short eye- ferrule B1 GC18-EK
GC18-J Joint ferrule B1 GC18-J
GC18-S Stop ferrule B1 GC18-S
GC18-TCK T-Cross Joint B1 GC18-TCK
GC18-RF Rope to fork ferrule B1 GC18-TCK
GC18-RE Rope to eye ferrule B1 GC18-TCK
GC18-K Chain to rope ferrule B1 GC18-K
GC20-B Bolt-joint ferrule B1 GC20-B
GC20-BK Short bolt-joint ferrule B1 GC20-S + BK
GC20-C Cross joint 5T GC20-C
GC20-E Eye ferrule B1 GC20-E
GC20-EK Short eye- ferrule B1 GC20-EK
GC20-J* Joint ferrule B1 GC20-J
GC20-S Stop ferrule B1 GC20-S + BK
GC20-TCK T-Cross Joint B1 GC20-TCK
GC22-E Eye ferrule C GC22-E
GC22-EK Short eye- ferrule C GC22-EK
Image of a Gerro™ Combi Die set is displayed on a light background with subtle white waves. This essential component for wire rope equipment is engraved with text, including "TALURIT" and other specifications. In the bottom right corner, there is a Gerro Combi™ logo with colored stripes. © Copyright Talurit AB. All rights reserved.
Close-up of two swaging dies stacked one on top of the other making a complete set, with engraved text on each block. A logo with the text "Gerro™ Combi" appears in the bottom right corner of the image, showcasing Talurit Group's precision in swagers and wire rope technology. © Copyright Talurit AB. All rights reserved.
A Gerro™ Combi Die set, essential for the mechanical splicing in the Gerro™ Combi system. The die has "TALURIT" engraved on its side and a "Gerro™ Combi" logo set against a wavy white backdrop in the bottom-right corner of the image. © Copyright Talurit AB. All rights reserved.
Two swaging dies with the engraved text "TALURIT" are stacked one on top of the other against a light gray abstract background. There is a "Gerro™ Combi" logo in the lower right corner. Each block, essential for mechanical splicing of wire rope, has a hole through its center, showcasing Talurit Group’s expertise. © Copyright Talurit AB. All rights reserved.

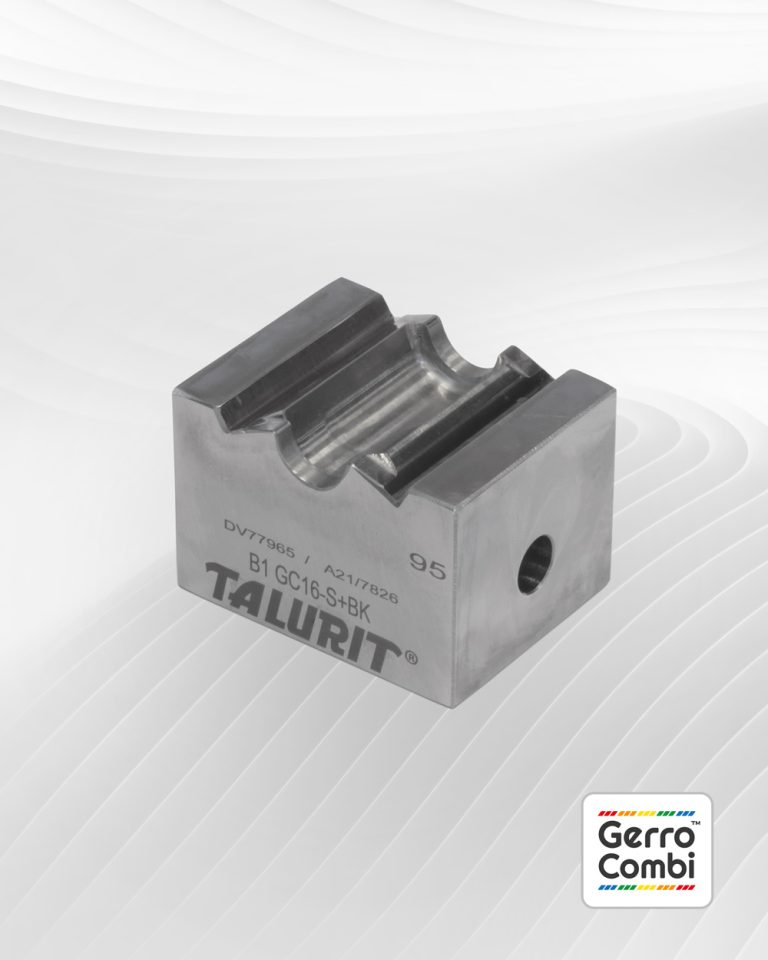

A Gerro™ Combi Die set featuring a metal block engraved with "TALURIT", "B1 GC16-SBK", "DV77965", "A217826," and the number "95." The surface behind the die is accompanied by a subtle wavy pattern and a small Gerro™ Combi logo in the background. © Copyright Talurit AB. All rights reserved.

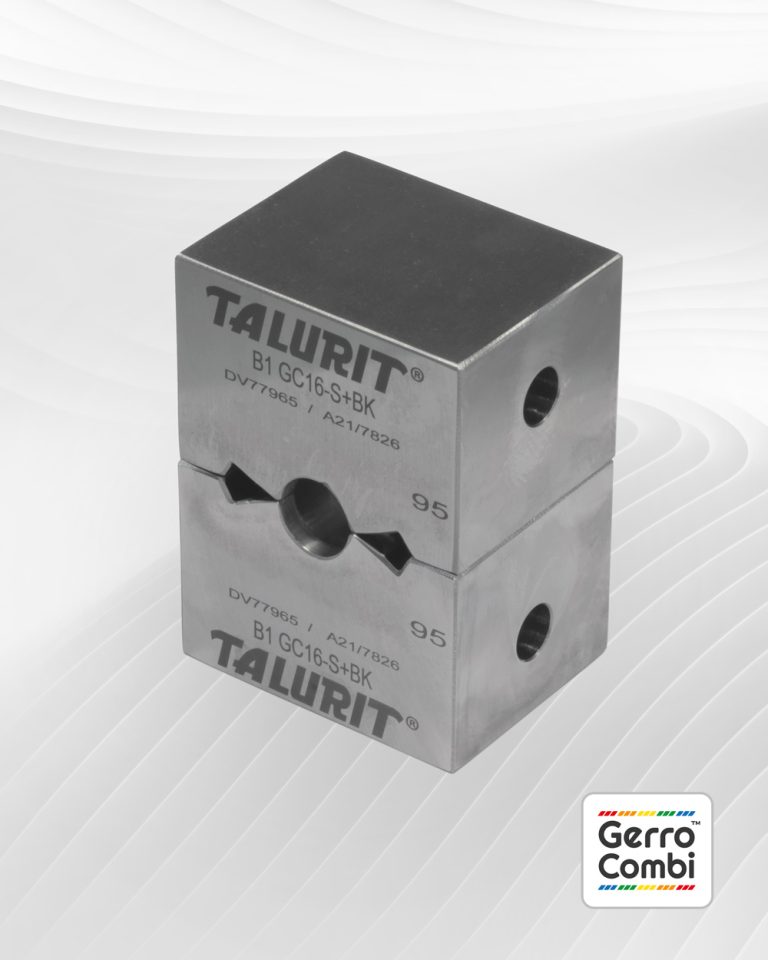

A Gerro™ Combi Die set with two square sections labeled "TALURIT" and "B1 GC16-S+BK" in uppercase letters, designed for wire rope equipment. Serial numbers, "DV77965/ A217826," are displayed beneath the labels. The geometric design includes holes, and the Gerro™ Combi logo is positioned at the bottom right corner. © Copyright Talurit AB. All rights reserved.
A Gerro™ Combi Die set, used for mechanical splicing of combination wire rope, is positioned against a light gray background with subtle wave patterns. The component features an engraved serial number and the "TALURIT" logo on it. In the bottom right corner, there is a "Gerro™ Combi" logo. © Copyright Talurit AB. All rights reserved.

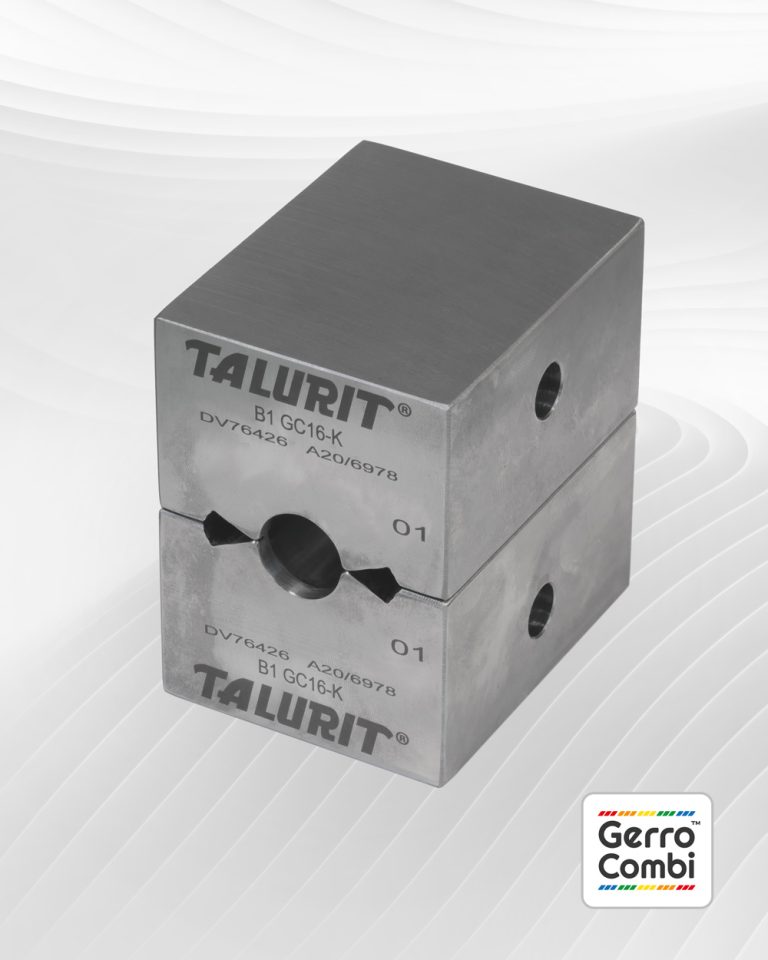

Two swaging dies, part of the Talurit Group's Gerro™ Combi line, are stacked with "Talurit" engraved on them. They feature circular cutouts in the center and are marked with "Gerro™ Combi, B1 GC1-K" and additional codes. The Gerro™ Combi logo is positioned in the bottom right corner. © Copyright Talurit AB. All rights reserved.

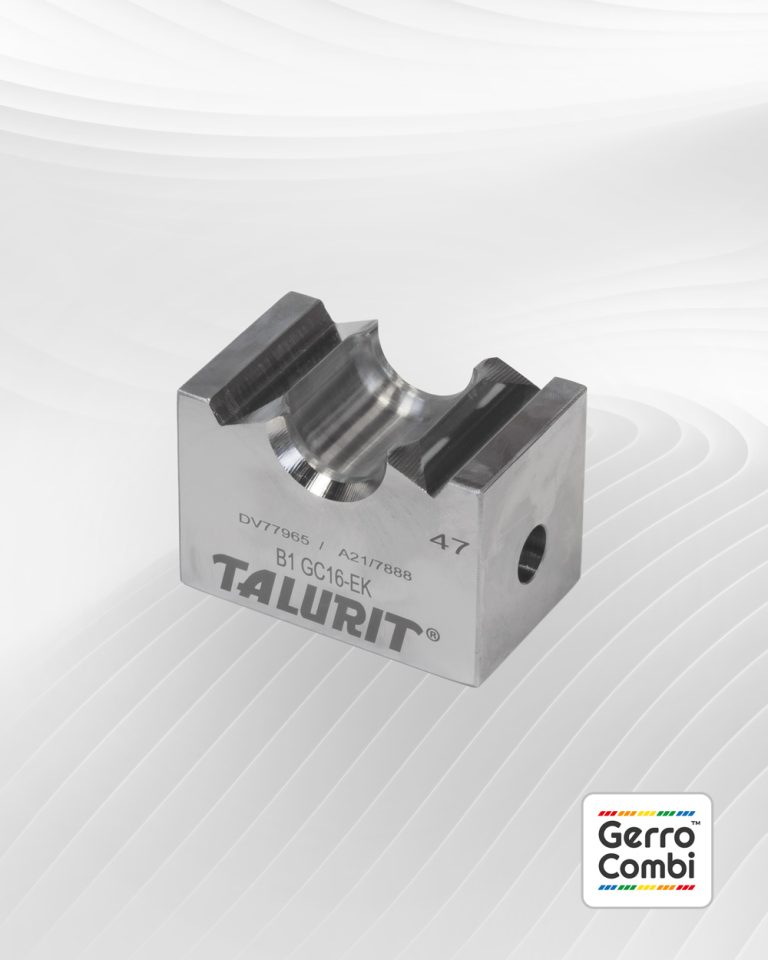

A swaging die with the brand name "Talurit" and model number "B1 GC16-EK" engraved on it is displayed. Designed for use in wire rope equipment, it features two cylindrical grooves on the top surface. The Gerro™ Combi Die sets logo is visible at the bottom right corner of the image. © Copyright Talurit AB. All rights reserved.

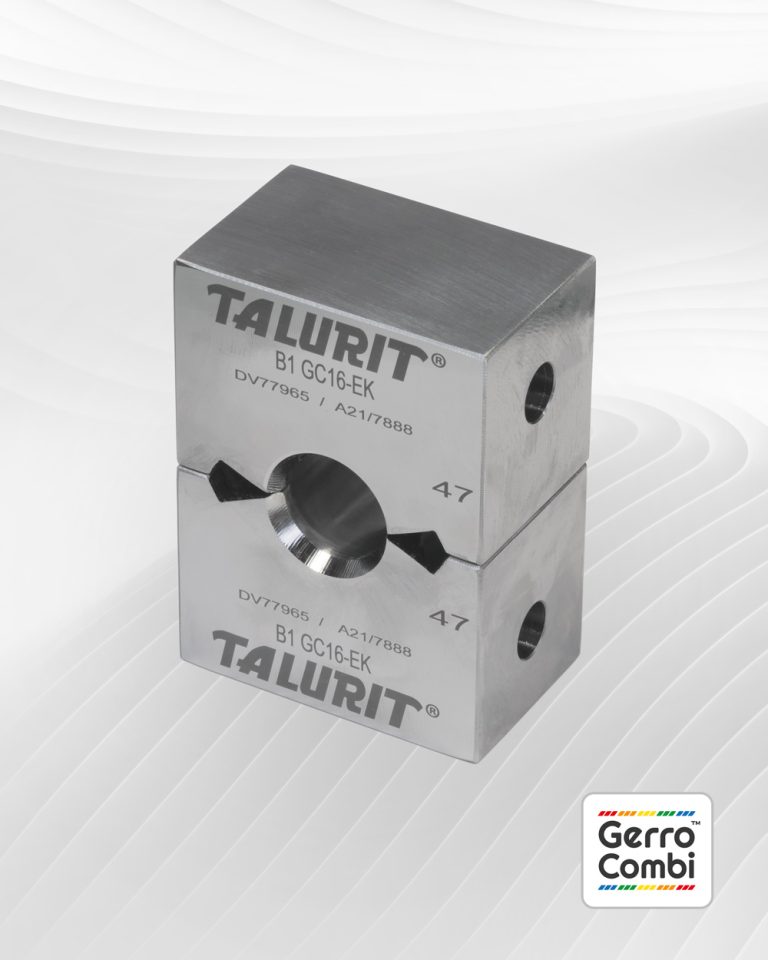

The image shows two metal dies stacked on top of each other, labeled "TALURIT B1 GC16-EK" with serial numbers "DV77965 / A2177588." These appear to be components used in the mechanical splicing of wire rope. There is a Gerro™ Combi Die sets logo in the bottom right corner. © Copyright Talurit AB. All rights reserved.
A metallic Gerro™ Combi Die set for the mechanical splicing of combination wire rope, featuring engraved text "B1 GC-12-E" and "12". The die includes a curved groove and a side hole. The background showcases a light gray and white wavy pattern, with the Gerro™ Combi logo positioned at the bottom right corner. © Copyright Talurit AB. All rights reserved.
Talurit® A close-up image of two metallic blocks branded "Talurit" with an inscription "B1 GC16-E." Each block, part of the Gerro™ Combi Die sets designed for the mechanical splicing of wire rope, features a hole through the center. The Gerro Combi logo is in the bottom right corner. © Copyright Talurit AB. All rights reserved.
A Gerro™ Combi Die labeled "TALURIT," featuring a groove in the center and a hole on the side, specifically designed for combination wire rope equipment. Engraved on its surface are the numbers "DV77965," "A217765," "B1 GC16-B," and "76." The bottom right corner bears the Gerro Combi logo. © Copyright Talurit AB. All rights reserved.
A Gerro™ Combi Die set labeled "B1 GC16-B" consists of two identical metal halves, each featuring a circular groove for wire rope ferrules, along with imprinted serial numbers. The bottom right corner showcases the "Gerro™ Combi" logo adorned with colorful stripes. © Copyright Talurit AB. All rights reserved.
The bottom part of a swaging die set featuring engraved numbers and letters on its surface. The textured, wavy background pattern highlights a "Gerro™ Combi" logo in the bottom right corner. The piece appears to be part of the Talurit Group's specialized wire rope ferrules. © Copyright Talurit AB. All rights reserved.

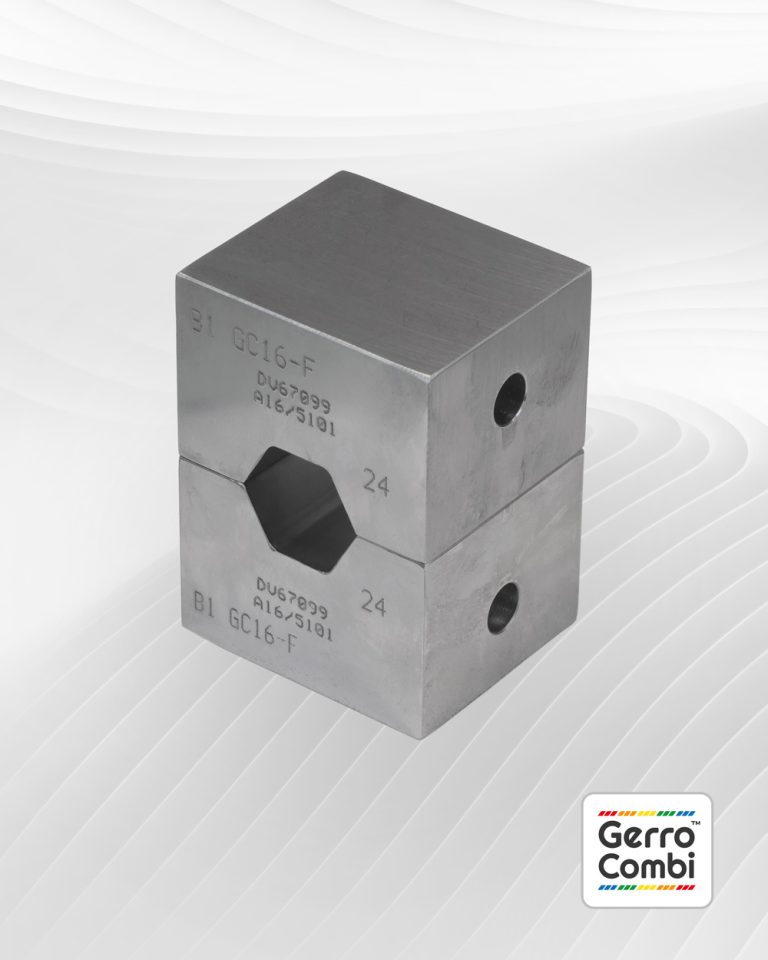

A pair of Gerro™ Combi Die sets, consisting of square metal blocks with a hexagonal hole through their centers. The upper block is labeled "31 GC16-F" and the lower block "B1 GC16-F." Both feature additional markings "DUG7909 AL6.3/101." Commonly utilized in swagers, these die sets also display the “Gerro™ Combi” logo in the lower right corner. © Copyright Talurit AB. All rights reserved.
Displayed against a light gray background with subtle wavy lines is a Gerro™ Combi Die, featuring intricate grooves and patterns on its metal surface. This component, used in the mechanical splicing of combination wire rope, bears the Talurit Group logo with "Gerro Combi" in the corner. © Copyright Talurit AB. All rights reserved.
The image shows a close-up of a Gerro™ Combi Die set, used for the mechanical splicing of combination wire rope, placed against a white background with subtle wave patterns. The tool is made of Swedish carbon steel. The Gerro™ Combi logo is visible in the bottom right corner. © Copyright Talurit AB. All rights reserved.
View all Gerro™ Combi products
Complete product range

Introduction to the Gerro™ Combi system

Welcome to the world of Gerro™ Combi, a premier playground system renowned for its top-quality aluminium ferrules designed specifically for use with Gerro™ Combi combination wire rope. Crafted meticulously in Sweden and Germany, our ferrules undergo rigorous testing to ensure they adhere to the highest safety and quality standards. Stand proud with Gerro™ Combi, the only system that complies with the EN 1176 standards.

World-renowned playground aluminium ferrules for combination wire rope

Our aluminium ferrules find global application across playground equipment, protection nets, sports, leisure, and stage rigging, making them versatile and reliable in various settings. With a legacy of safety and innovation dating back to 1948, Talurit® pioneers excellence in every Gerro™ Combi ferrule we deliver.

Designed with user safety in mind, our ferrules feature smooth edges to minimize risks for end users and reduce the need for extensive manual grinding. All load and swaging force specifications are based on comprehensive testing conducted specifically on our Gerro™ Combi combination wire rope split (RSP) with a steel core (IWRC).

Please note that load capacities may differ with varying combination wire ropes, with load values denoted in kN (30 kN ≈ 3000 kg). For your convenience, each article number references the combination wire rope diameter required, such as GC16-E for a 16mm rope.

Trust Gerro™ Combi for playground aluminium ferrules that prioritize safety, quality, and performance in every application.
